Purgeur de vapeur DT46

automatiqueà disquesous haute pression

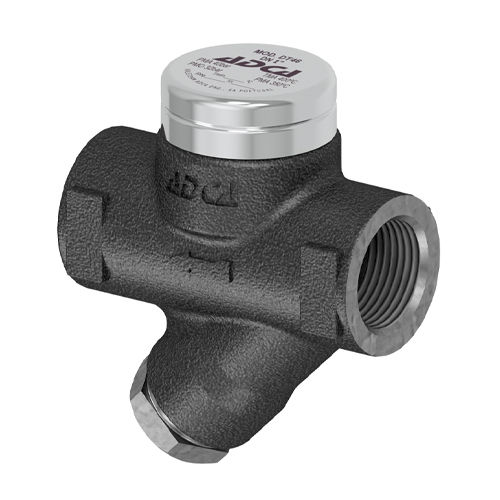

The DT46 thermodynamic disc steam traps are compact and lightweight, easy to install traps, excellent for high pressure systems and steam tracing applications. The insulation cover ensures a consistent operation and makes it particularly suitable for those applications where the weather conditions, such as rain and wind, may affect the normal operation. These traps offer a wide operating range, without adjustment and include a bimetal air vent ring which reduces start-up time by preventing air binding. MATERIAL: Carbon steel SIZES: 1/2'' to 1'' – DN 15 to DN 25 CONNECTIONS: Female threaded ISO 7 Rp or NPT Flanged EN PN 40, PN 63 or PN 100 Flanged ASME Class 150, 300 or 600 Socket weld (SW) ASME B16.11
