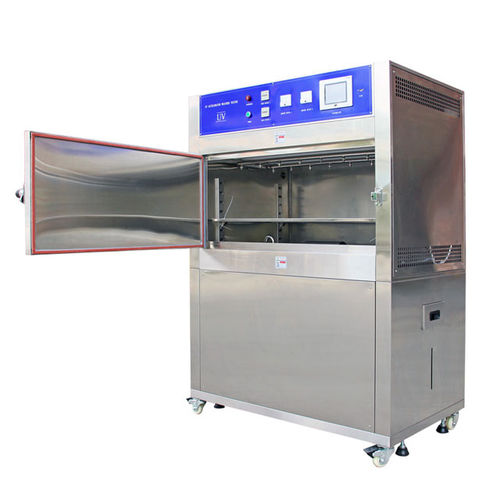

Chambre d'essai de vieillissement à la lumière UV
de lumièrepour le contrôle qualitécompacte

Chambre d'essai de vieillissement à la lumière UV - Sanwood Technology - de lumière / pour le contrôle qualité / compacte
Chambre d'essai de vieillissement à la lumière UV - Sanwood Technology - de lumière / pour le contrôle qualité / compacte
Chambre d'essai de vieillissement à la lumière UV - Sanwood Technology - de lumière / pour le contrôle qualité / compacte - image - 2
Chambre d'essai de vieillissement à la lumière UV - Sanwood Technology - de lumière / pour le contrôle qualité / compacte - image - 3
Chambre d'essai de vieillissement à la lumière UV - Sanwood Technology - de lumière / pour le contrôle qualité / compacte - image - 4
Chambre d'essai de vieillissement à la lumière UV - Sanwood Technology - de lumière / pour le contrôle qualité / compacte - image - 5
Chambre d'essai de vieillissement à la lumière UV - Sanwood Technology - de lumière / pour le contrôle qualité / compacte - image - 6
Ajouter à mes favoris
Ajouter au comparateur


Caractéristiques

Paramètre contrôlé
de lumière
Type de tests
de vieillissement à la lumière UV
Domaine d'application
pour le contrôle qualité
Configuration
compacte
Source lumineuse
UV
Longueur intérieure

1 170 mm, 2 000 mm
(46,06 in, 78,74 in)

Hauteur intérieure

500 mm
(19,69 in)

Profondeur intérieure

600 mm, 1 000 mm
(23,62 in, 39,37 in)

Longueur extérieure

1 300 mm, 2 300 mm
(51,2 in, 90,6 in)

Hauteur extérieure

1 250 mm, 1 750 mm
(49,21 in, 68,9 in)

Profondeur extérieure

750 mm, 1 250 mm
(29,53 in, 49,21 in)

Description

UVB-313 Lamp: UVB-313 The short-wavelength UV light emitted by the lamp is stronger than the sun's ultraviolet rays normally applied to the Earth's surface, which can accelerate the aging of the material to a greater extent. However, the lamp may cause unrealistic damage to certain materials. It is mainly used for quality control and research and development, or for running tests on materials with extremely high weather resistance. UVA-340 lamp: The UVA-340 lamp is excellent for simulating short-wavelength UV light in sunlight, from 365 nm to the sun's cut-off point of 295 nm. UVA-351 Lamp: Simulates sunlight through the window glass, which is most effective for aging the material in the test chamber. (All the above lamps are imported lamps originally from the United States) The biggest difference between the fluorescent UV accelerated aging test chamber and other domestic brands is that the energy during the whole test is controllable and automatically adjusted. It is well known that the energy of the test process is the most important factor causing the aging of polymer materials. In order to ensure the reproducibility and comparability of test results, ultraviolet light energy is a very important technical index. We use the principle similar to the sun's eye to automatically monitor the energy value of the test process. When the aging of the lamp does not reach the energy value set by the test, the system can automatically monitor and automatically replenish it immediately.

VIDÉO

Catalogues

Aucun catalogue n’est disponible pour ce produit.

Voir tous les catalogues de Sanwood Technology

Autres produits Sanwood Technology

UV Lamp Weathering Test Chamber
