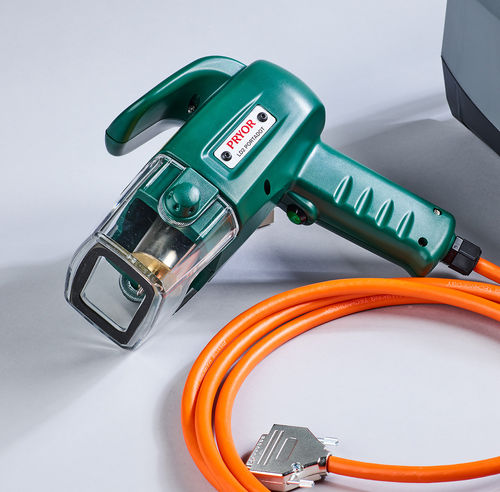

Machine de marquage électromagnétique PortaDot 50-25

par micro-percussionde métald'aluminium

La gamme PortaDot 50-25 de Pryor fournit une méthode rapide et portative de marquage par micro-percussion, également connue sous le nom de marquage par points. C'est la solution idéale pour le marquage permanent d'informations alphanumériques, de logos ou de codes-barres 2D sur des composants statiques, de grande taille ou lourds. Elle est souvent utilisée dans le transport ferroviaire, l'industrie du pétrole et du gaz, la fonderie et les applications de construction. Technical Specifications for PortaDot with 50mm x 25mm marking window: Marking Area: 50mm x 25mm Standard Character Sizes: 0.19mm - 49.9mm in increments of 0.19mm (5x7 font) or 0.25mm (7x9 font) Dimensions: 245mm(H) x 176mm (W) x 214mm (L) Weight: Marking head/cable: 2.3kg Drive Mechanism: lead screw Connectivity Options: 1 x RS232, 1 x USB (that has the option of being removed to create 2 x RS232) and digital I/O (8 in 6 out) connectivity. Optional Ethernet TCP/IP and optional Field Bus. Cable length: 3m standard (6m or 10m optional) Dot Mark output styles: 5 x 7,7 x 9,Varidot, 2D Data Matrix, HPGL, BMP Logos Memory Capacity: 1350 layouts (LCD) Controller features: Full QWERTY integrated membrane with additional PS/2 port for external keyboards. On screen mark preview and trial run features Controller dimensions: 375mm x 335mm x 132 mm Controller weight: 6.5kg Power supply: AC Input 50/60Hz; 100-240VAC Optional battery powered controller: 36V Li-Ion 3.0Ah/108Wh battery Safety features: Remote start/Stop control box Additional features: re-circulating ball-linear guideways to provide the highest marking accuracy. Head cable industrial steel connector to easily disconnect the marking head when needed.
