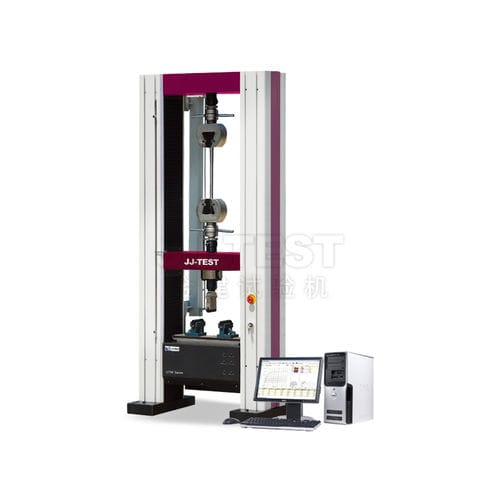

Machine d'essai universelle UTM

de compressiond'élongationde flexion

UTM Series Universal Testing Machine Overview Universal Testing Machine is used to determine the tensile elastic modulus, flexural elastic modulus, compressive modulus, yield strength, tensile strength, breaking strength, elongation at break, compressive stress, compressive strain, shear, peeling, brace, tear, penetration and other mechanical properties of various thermosetting and thermoplastic plastics. It is applicable to material analysis and inspection of engineering plastics, reinforced nylon, modified plastics, plastic profiles, plastic pipes, plastic sheets and films. This product has passed the EU CE certification, and has continuously passed the "CNAS plastic tensile property test" capability verification (T0554,T0646 ,PT0017-T018,T0708,T07779). Standards ISO 527, ISO-37, ISO 6259-3, ISO 604-2002, ISO 178-2004, ISO 1209-2007, ASTM D 638-2008, and the equivalent. Characters 1. Super rigid structure Gantry type ultra-high stiffness frame structure and wide speed control range. 2. Triple speed closed loop control Three speed closed-loop control modes of stress, strain and displacement can be carried out, and the control modes can be switched seamlessly; The advanced closed-loop AC servo maintenance free control system and imported reducer and ball screw are adopted to improve the control accuracy and stability. 3. Intelligent censor Load cell information can be indentified automatically, with the advantage of replacing a new cell without on-the-spot calibration.
