Alimentation électrique AC/DC FSP300M-K36-24A

à sortie simpleavec protection contre les courts-circuitspour circuit imprimé

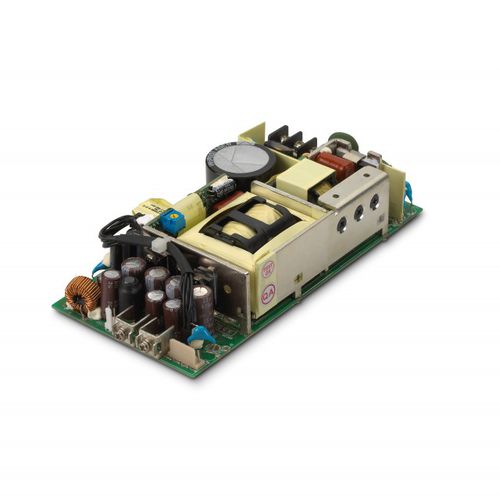

Feature • Certified Medical Safety IEC 60601-1 • Input Voltage Range 90-264 VAC • Low Leakage Current • Operating Altitude 5,000M • Power Factor 0.98 • Over Voltage/ Over Current/ Short Circuit Protections • Compliant with RoHS requirement Introduction This product is Class I open frame in a package of 3 × 6 × 1.38 inch, which output voltage is 24V with +5V standby power and maximum output power is 300W at 10 CFM forced air cooling or 200W at convection cooling. The unit is constructed on a printed circuit board, which could with a L-bracket or enclosed form for mechanical support. The unit approved medical safety and certified EMC medical standard, and is designed for medical applications.
