Displacer Type Level Switch
DESIGN FEATURES:
Mounting: Min. 50 NB to 300 NB.
Rugged, industrial level switches specifically designed for versatility of application
Stainless steel switching mechanisms – no aluminium or brass
High pressure capability
Wide variety of agency approvals
Versatile switching mechanisms for retro-fit situations
Ideal for Deep tank or Sump for low alarm.
Pressure : Vacuum to 40 Kg / cm2
Two / Four displacers available for pump control.
Suitable for high temperature
Level Height up to 20 Mtr

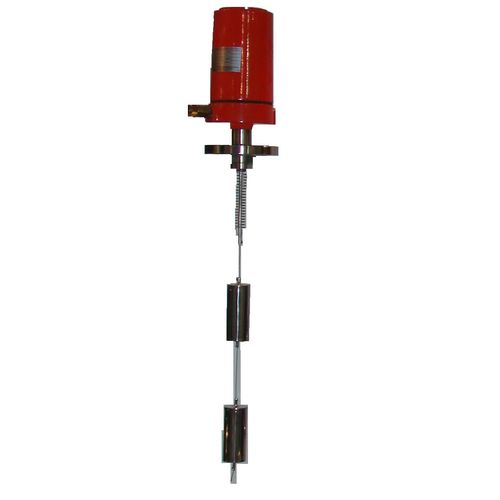

Displacer Type Level Switch
Works on force Balance Principle. Displacer is suspended by a spring.
When liquid level rises and covers the displacer, it becomes lighter and the spring relaxes. This causes a small upward movement of the rod assembly inside the casing which activates the magnetically operated micro switch.
Mounting: min. 80 NB to 300 NB.
Ideal for Deep tank or Sump for low alarm.
Pressure: vacuum to 15 Kg/Cm2.
Two displacers available for pump control.
Suitable for high temperature.
External cage on request.
For High Temperature (Max 350oC on request)
